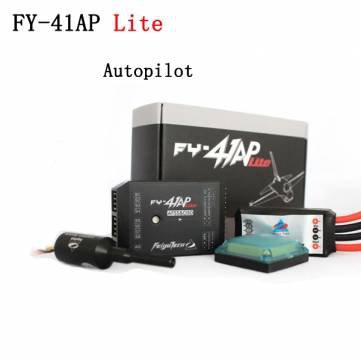

Feiyu Tech FY 41AP Lite Entry Level FPV Autopilot
4 available
Details
Shipping: United Kingdom: £3.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Brief Description:
Supported servo output : 50Hz refresh frequency
Recommended Transmitter : PCM or 2.4GHz with minimum 6 channels
FY-41AP Lite Module Working Voltage : [email protected]( Powered by Power Manager)
Air speed senor : 0 ~ 200KM/h
Power Manager : 35g(50×24×18mm)
Working Voltage Range : Power of battery 7~26V (2S ~ 6S)
Measuring current : 0~100A
Power for FY-41AP Lite module : 5.3V@2A
Power for Video transmission system : 12V@2A
Operating Temperature : -10°C ~ 50°C
Assistant Software System Requirement : Windows XP sp3 / Windows 7 / Windows 8
Hardware:
FY-41AP Lite: 20g (61×39×14mm);
GPS :24g (32×32×13.5mm);
Air speed senor:9g (64×13.5×13.5mm);
Power Manager:35g(50×24×18mm);
Supported aircraft:
1, Normal / Traditional fixed-wing planes;
2, Delta-winged plane with rudder;
3, Delta-winged plane without rudder;
4, V-tail plane with aileron;
5, V-tail plane without aileron;
Nice Features:
FY-41AP Lite is an inertial attitude measurement instrument used for FPV flight on fixed-wing aircrafts. It has an integrated OSD video overlay system that presents critical flight information such as power management, airspeed, altitude, and flight direction via its electronic compass, allowing for a clear visual flight while ensuring key information is within sight.
Flight stabilization is achieved via an integrated 3 axis gyro, 3 axis accelerometer and a barometric pressure sensor. This enables the module to accurately measure flight attitude, earth azimuth & relative altitude to achieve:
Extremely stable conventional flight pattern
Stabilized 3D flight
Automatically return to home (RTL)
Fixed altitude flight
Heading lock flight
Auto circling over a fixed GPS location.
Downloads available online:
FY-41AP Lite Firmware V1.01
FY-41AP Lite Manual
FY-41AP Lite OSD display part firmware V1.22a
FY module firmware upgrade software and manual
GCS 5.11 software for 41 and DOS
Ships:
Insured Priority Express Mail 6-12 Business Days U.S.,U.K. destinations.
Insured Standard Registered Shipping 7-20 Business Day Delivery most other Destinations.(Expedited 3-6 business Day Delivery Service is available.Email us for latest rate).
Package Includes:
1 FY-41AP Lite
1 GPS
1 Air speed senor
1 Power Manager
Supported servo output : 50Hz refresh frequency
Recommended Transmitter : PCM or 2.4GHz with minimum 6 channels
FY-41AP Lite Module Working Voltage : [email protected]( Powered by Power Manager)
Air speed senor : 0 ~ 200KM/h
Power Manager : 35g(50×24×18mm)
Working Voltage Range : Power of battery 7~26V (2S ~ 6S)
Measuring current : 0~100A
Power for FY-41AP Lite module : 5.3V@2A
Power for Video transmission system : 12V@2A
Operating Temperature : -10°C ~ 50°C
Assistant Software System Requirement : Windows XP sp3 / Windows 7 / Windows 8
Hardware:
FY-41AP Lite: 20g (61×39×14mm);
GPS :24g (32×32×13.5mm);
Air speed senor:9g (64×13.5×13.5mm);
Power Manager:35g(50×24×18mm);
Supported aircraft:
1, Normal / Traditional fixed-wing planes;
2, Delta-winged plane with rudder;
3, Delta-winged plane without rudder;
4, V-tail plane with aileron;
5, V-tail plane without aileron;
Nice Features:
FY-41AP Lite is an inertial attitude measurement instrument used for FPV flight on fixed-wing aircrafts. It has an integrated OSD video overlay system that presents critical flight information such as power management, airspeed, altitude, and flight direction via its electronic compass, allowing for a clear visual flight while ensuring key information is within sight.
Flight stabilization is achieved via an integrated 3 axis gyro, 3 axis accelerometer and a barometric pressure sensor. This enables the module to accurately measure flight attitude, earth azimuth & relative altitude to achieve:
Extremely stable conventional flight pattern
Stabilized 3D flight
Automatically return to home (RTL)
Fixed altitude flight
Heading lock flight
Auto circling over a fixed GPS location.
Downloads available online:
FY-41AP Lite Firmware V1.01
FY-41AP Lite Manual
FY-41AP Lite OSD display part firmware V1.22a
FY module firmware upgrade software and manual
GCS 5.11 software for 41 and DOS
Ships:
Insured Priority Express Mail 6-12 Business Days U.S.,U.K. destinations.
Insured Standard Registered Shipping 7-20 Business Day Delivery most other Destinations.(Expedited 3-6 business Day Delivery Service is available.Email us for latest rate).
Package Includes:
1 FY-41AP Lite
1 GPS
1 Air speed senor
1 Power Manager
