£39.03
On Hold
Hobbyeagle A3 Super 2.0 II 3-Axis Gyro Flight Controller Stabilizer
10 available
Details
Shipping: United Kingdom: £3.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Hobbyeagle A3 Super 2.0 II 3-Axis Gyro Flight Controller Stabilizer
The Eagle A3 Super II offers 6 flight modes, including Normal Stabilization Mode, 3D Attitude Locking Mode, Auto/Self-balance Mode, Auto-Hover Mode, User Defined Mode, and Gyro Deactivated Mode. By using a 3-way switch on your transmitter you can switch between any 3 different modes during flight. The A3 Super II also provides two stick control modes: Manual Mode and Auto Mode.
Description:
Specifications Brand: Hobbyeagle
Item: A3 Super 2.0 II Flight Control Stabilizer
Main Controller: 32-bit MCU
Sensor: 3-axis gyroscope and 3-axis accelerometer
Gyroscope Scale Range: ±2000 dps
Accelerometer Scale Range: ±4g
Input Signal: Standard PPM with center point 1520uS, or S.Bus serial data
Output Signal: PWM max frequency 333Hz, 1520±500uS
Input Voltage: 4.8V - 7.4V
Operating Temp: -10 ℃ to 50 ℃
Size: 43×27×14mm
Weight: 10g (excluding wires)
Features
Works with all major receiver brands including Spektrum, Futaba, Hitec, JR, Tactic, and more.
Integrated design of 6-axis (3 gyro+3 accelerometers ) 32-bit MEMS sensor for self-stability and self-balance.
Advanced brown-out fast recovery ability provides better security and reliability.
6 flight modes: Normal Stabilization, 3D Attitude Locking, Auto-balance, Auto-Hover, User Defined, and Gyro Deactivated Modes.
2 stick control modes: Manual Mode(MM) and Auto Mode(RR/AR).
Various wing types: 1AIL+1ELE, 2AIL+1ELE, 1AIL+2ELE, 2AIL+2ELE, delta-wing and V-tail.
Independent gyro gain adjustment and gyro ratio selection for each flight mode.
Separate adjustments for servo travel limits.
Up to 333Hz servo operating frequency, compatible with all analog and digital servos.
5-level response rate setting allows you to use it on gas-powered planes.
Compatible with HV (7.4V) receivers and servos.
Flat or upright mounting orientations.
Newly designed config GUI makes gyro setup simple and intuitive.
This flight stabilizer requires at least 3 receiver channels, up to 7 channels. The channels of AIL, ELE and RUD must be connected at all times otherwise this controller will not work.
The A3 Super II has an integrated high precision 6-axis (3 gyro + 3 accelerometers) MEMS sensor with advanced attitude and PID control algorithm. The gyro can accurately detect the angular velocity and attitude of the aircraft and issue commands to all servos, which enables perfect balance and stability throughout the flight. The A3 Super II has built-in capabilities for delta-wing (flying-wing), v-tail, remote master gain adjustment, and separate dual aileron and elevator control. Finally, two of the most exciting new features on this gyro are the One-Click Rescue which allows you to return your plane to level flight at the flip of a switch (similar to Horizon's SAFE technology) and the One-Click Hover which allows you to put your plane into a perfect hover at the flip of a switch.
Functions:
Flight Mode (NORM/3DAL/SBAL 3-position assignment)
AUX Mode(Mode-1/2/3/4)
Wing Type (Normal/Delta-wing/V-tail)
Master Gain (0~100%)
Normal Gain (Aileron/Elevator/Rudder 0~100%)
3D Flight Gain (Aileron/Elevator/Rudder 0~100%)
Self-balance Gain (Aileron/Elevator 0~100%)
Gain Ratio (NORM/3DAL/SBAL S/M/L)
Mount Orientation (Face Up/Face Down)
Servo Limits (AIL-L/AIL-R/ELE-U/ELE-D/RUD-L/RUD-R 0~100%)
Gyro On-Off (AIL/ELE/RUD ON/OFF)
Gyro Direction (AIL/ELE/RUD/AIL2/ELE2 NOR/REV)
Servo Operating Frequency (50Hz/63Hz/83Hz/125Hz/250Hz)
Response Rate (Very Slow/Slow/Standard/Fast/Very Fast)
Control Behavior (Stable/Normal/Sport)
Stick Deadband (0-10%)
Level Offset (Auto/Manual Roll/Pitch ±20°)
Stick Centering
Data Save (5 copies)
Data Load (5 copies)
Device Info.
Card Info.
Data Reset
YiHUA-937D+ 60W 110V Constant-Temperature Soldering Iron Kit/ LCD Display (US Standard) Black
Priority Direct Mail 6-9 business days U.S. ,U.K. Australia Orders
Standard Registered Air Shipping 7-20 day delivery most other destinations.

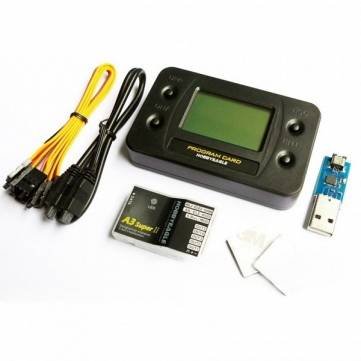

Package Includes:
1 Eagle A3 Super II Flight Stabilizer
1 Programming module with LCD display
1 Data cable
1 USB Adapter (to connect stabilizer to PC for firmware updates and programming)
1 15cm male to male receiver cable
2 15cm male to male 3-way receiver cables
