RC250 Frame Kit Combo MX1804 12A ESC 5030 Propeller CC3D FC

RC250 Frame Kit Combo w/MX1804 12A ESC 5030 Propeller CC3D FC

Description:
Mini 250 FPV Quadcopter Frame Specifications:
Materials: 3k Weave Carbon Fiber
Fasteners: Stainless Steel + Nylon 6/6
Size: 220mm diagonally, 175mm wide, 130mm long motor-to-motor; about 1/2 the size of a regular quadcopter
Maximum Propeller: 5"
Motor Mount: M2 12mm - 16mm (Tiger MN1806 2300kv, RCX 1804 2400kv), M3 19mm (Tiger MT2206 2000kv, Sunnysky
X2204 2300kv)
Flight Controller Mount: 30.5mm x 30.5mm
Board Camera Mount: 32mm x 32mm

Motor Specification:
Brand Name: MARSPOWER
Model: MX1804
Motor KV value: 2480KV
Motor Diameter: 22mm
Motor Length (without shaft):22.8mm
Stator Diameter: 18mm
Stator Length: 4mm
Shaft: 3.17mm
Batteries: 2-3Cells
No Load Current: 0.3A
Top Mounting Holes: None
Bottom Mounting Holes:4*(12*12)mm
Weight: 18g
Package weight: 28 g
Design: CW,CCW

12A ESC Specifications:
Input Voltage: 2-3S LIPO
Working Current: 12A
BEC: 5V / 1A
Dimensions: 38 x 20 x 6 mm
Weight: 30 g
Package weight: 40G

CC3D Flight Controller Introduction:
Item name: CC3D Atom/Mini CC3D/CC3D EVO
Size (board only): 30mm x 17mm
Size (in case): 22 x 38 x 12mm WxLxH
Features:
With stable performance, it is practical and durable
Offering you high compatibility, reliability and stability.
Suitable for 250 Mini four axis and F330 aircraft,etc

Ships Priority Direct Mail 6-9 business days U.S. & Australia
Standard Registered Air Shipping 7-20 day delivery U.K.other destinations.

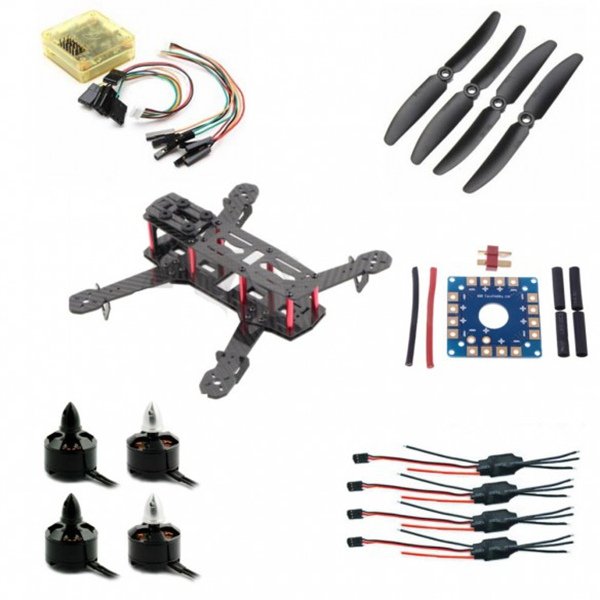

Package Includes:
1 Mini 250 FPV Quadcopter Frame (Not assembled)
1 ESC Connection Board
4 Motor
4 12A Simonk ESC
2 5030 Propeller Pair
1 CC3D Flight Control Board Set
