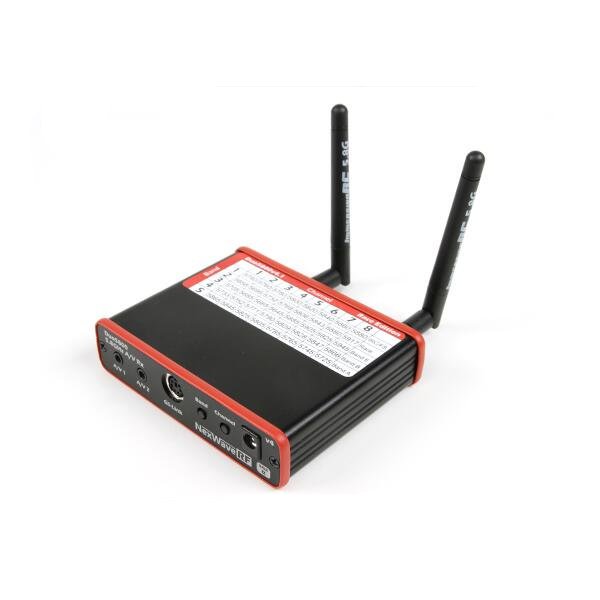

ImmersionRC FPV V4.1 Race Edition 40ch 5.8GHz Raceband Dual Output AV Receiver
4 available
Details
Shipping: United Kingdom: £3.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
ImmersionRC DUO5800 V4.1 Race Edition 40ch 5.8GHz Raceband Dual Output Diversity Receiver
ImmersionRC's newest version (4.1) of their popular 5.8GHz diversity receiver, the DUO5800 V4 now with 40ch including RaceBand.
This receiver includes the popular Fatshark/ImmersionRC 'NexWaveRF' series of A/V frequencies + 7 RaceBand channels and now
also includes an additional 24ch for 5.8GHz. Now 1 receiver can cover all 5.8GHz frequencies. The diversity receiver system
automatically chooses the best signal reception between the two internal receivers, giving you the best picture possible.
Description:
Item Name: ImmersionRC DUO5800 V4.1 Diversity Receiver
Power Requirements: 6~16v
Power Consumption: 300mA
Dimensions: L=88mm x W=105mm x H=25mm
Weight: 194g with antenna
Sensitivity: better than -90dBm
Audio: Stereo, Subcarriers on 6.0, and 6.5MHz
Modulation: FM, Audio and Video
Alarm: Low Battery, Programmable
Features:
40 Channel support, ImmersionRC/FatShark/Airwave, Boscam, Team Black Sheep, DJI
Exclusive high quality NexWaveRF/Raceband receiver technology
Dual A/V output, for two viewing/recording devices
Single-button user interface, and remote control from the ground-station
A/V receiver with diversity antenna inputs
GS-Link for single-cable connection to a ground-station
Not affected by 2.4GHz, or UHF R/C radios
Frequency Bands, v4.1 (with RaceBand):
Frequency, Band 1: 5740, 5760, 5780, 5800, 5820, 5840, 5860MHz (IRC/FS)
Frequency, Band 2: 5658, 5695, 5732, 5769, 5806, 5843, 5880, 5917MHz (Race)
Frequency, Band 3: 5705, 5685, 5665, 5645, 5885, 5905, 5925, 5945MHz (Band E)
Frequency, Band 4: 5733, 5752, 5771, 5790, 5809, 5828, 5847, 5866MHz (Band B)
Frequency, Band 5: 5865, 5845, 5825, 5805, 5785, 5765, 5745, 5725MHz (Band A)
Race Band will allow race band channels available in the Vortex. This band falls within the legal US ham band
English Manual enclosed with package
Insured Express Shipping 6-9 business days U.S . & U.K. Orders
Insured Registered Air Shipping 7-20 day delivery other destinations.
Package Includes:
1 ImmersionRC DUO5800 V4.1 Diversity Receiver
2 antennas (3dBi 5.8Ghz omni-directional)
2 30cm RCA AV cables (3.5mm 4-POL to 3xCinch)
1 1m DC Power cable (open ends)
