£21.27
On Hold

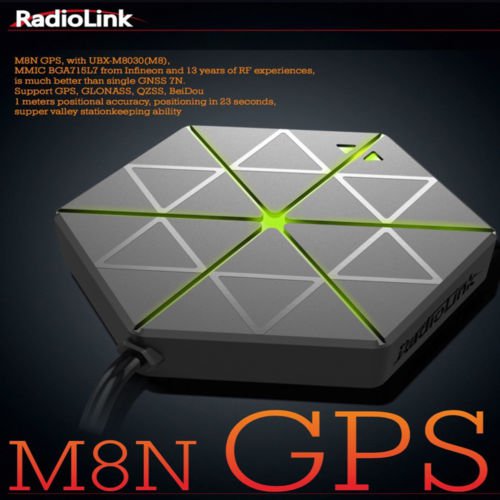

Radiolink M8N GPS Module UBX-M8030 for Naze32 APM CC3D SP F3 Naze32 Flip32 PX4 Flight Controller
5 available
Details
Shipping: United Kingdom: £3.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Radiolink M8N GPS Module UBX-M8030 for Naze32 APM CC3D SP F3 Naze32 Flip32 PX4 Flight Controller
Package Includes:
1 M8N GPS Module
Product Specifications:
Brand : Radiolink
Product Name: M8N GPS Module
Positional Accuracy: 1m precision when working with concurrent GNSS, 2.5m precision when working with single GNSS.
Velocity precision: 0.1m/s
Max height: 50000m
Max speed: 515m/s
Max acceleration: 4G
Max update rate: up to 18Hz
Sensitivity
Tracking & Nav.: -167dBm; Re-acquisition:-163dBm; Cold start:-151dBm; Hot start:-159dBm
Time to first fix: Cold start: 26s, Hot start:1s.
Power supply: voltage 3.3VDC+-5%, current 50~55mA
Ports:
A. GPS UART interface, baud rate: 1.2K/4.8K/9.6K/19.2K/38.4K/57.6K/112.5K
B.Geomagnetic I2C interface
Top Features:
Top Configuration
-GPS decoder chip: Radiolink M8N GPS, with u-blox UBX-M8030(M8), 72-channel, MMIC BGA715L7 from Infineon and 13 years of RF experiences, is much better than single GNSS 7N.
A.Concurrent reception of GPS/QZSS L1 C/A,GLONASS L10F, BeiDou B1
B.SBASL1 C/A:WAAS, EGNOS, MSAS
- Antenna : 2.5dbI high gain and selectivity ceramic antenna
- Power amplify IC: MMIC BGA715L7 from Infineon
- Filter: SAWF(Surface acoustic wave filter) form Murata
- Geomagnetic: HMC5983 from Honeywell
Currently Ships:
Priority Express Mail 6-9 business days U.S. , U.K. destinations.
U.S. Shipping Carriers FED-X or USPS
Insured Standard Registered Air Shipping 7-20 day delivery other destinations.
Package Includes:
1 M8N GPS Module
Product Specifications:
Brand : Radiolink
Product Name: M8N GPS Module
Positional Accuracy: 1m precision when working with concurrent GNSS, 2.5m precision when working with single GNSS.
Velocity precision: 0.1m/s
Max height: 50000m
Max speed: 515m/s
Max acceleration: 4G
Max update rate: up to 18Hz
Sensitivity
Tracking & Nav.: -167dBm; Re-acquisition:-163dBm; Cold start:-151dBm; Hot start:-159dBm
Time to first fix: Cold start: 26s, Hot start:1s.
Power supply: voltage 3.3VDC+-5%, current 50~55mA
Ports:
A. GPS UART interface, baud rate: 1.2K/4.8K/9.6K/19.2K/38.4K/57.6K/112.5K
B.Geomagnetic I2C interface
Top Features:
Top Configuration
-GPS decoder chip: Radiolink M8N GPS, with u-blox UBX-M8030(M8), 72-channel, MMIC BGA715L7 from Infineon and 13 years of RF experiences, is much better than single GNSS 7N.
A.Concurrent reception of GPS/QZSS L1 C/A,GLONASS L10F, BeiDou B1
B.SBASL1 C/A:WAAS, EGNOS, MSAS
- Antenna : 2.5dbI high gain and selectivity ceramic antenna
- Power amplify IC: MMIC BGA715L7 from Infineon
- Filter: SAWF(Surface acoustic wave filter) form Murata
- Geomagnetic: HMC5983 from Honeywell
Currently Ships:
Priority Express Mail 6-9 business days U.S. , U.K. destinations.
U.S. Shipping Carriers FED-X or USPS
Insured Standard Registered Air Shipping 7-20 day delivery other destinations.
