£22.08
On Hold

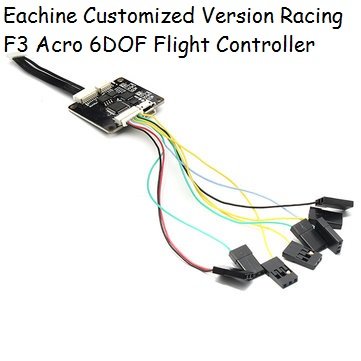

Eachine Customized Version Racing F3 Acro 6DOF Flight Controller STM32F303 For Eachine Racer 250
4 available
Details
Shipping: United Kingdom: £3.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Eachine Customized Version Racing F3 Acro 6DOF Flight Controller STM32F303 For Eachine Racer 250
Package includes:
1 Eachine Racing F3 Acro 6DOF Flight Controller
Brief Description:
Product Brand: Eachine
Product Name: Racing F3 Acro 6DOF Flight Controller
Size: 36x36mm board with 30.5mm mounting holes
Weight: 5 grams
Application: for Eachine racer 250 and other RC Multi-rotors and Fixed wings
STM32F303 CPU with FPU 256kB flash.
8MB (64Mbit) High-Capacity Flash
MPU6050 accelerometer/gyro.
Micro USB socket
4~ 4pin JST-SH sockets (I2C, SWD, 2xUART).
2~ 8pin JST-SH sockets (PPM, PWM, SERIAL RX, GPIO, ADC, 3V, 5V, GND).
8~ 3pin though-holes for pin headers for ESC/Servo connections.
2~ 4pin though-holes for pin headers for 2x serial ports.
2~ 2pin though-holes for pin headers for battery voltage and buzzer.
Great Product Features !
Acro version Standard model for racing/acro flying.
No-compromise I/O. You can use all the features all the time; e.g. Connect your OSD + SmartPort + SBus + GPS + LED Strip + Battery Monitoring + Sonar + 8 motors - all at the same time!
Flight Logging: On-board high-capacity black box flight log recorder - optimize your tuning and see the results of your setup with- out guesswork.
Next generation STM32 F3 processor with hardware floating point unit for efficient flight calculations and faster ARM-Cortex M4 core.
Stack-able design perfect for integrating with OSDs and power distribution boards.
16 PWM I/O lines 16 PWM I/O lines for ESCs, Servos and legacy receivers. 8 available on standard pin headers. 8 via side mounted connectors.
OneShot ESC Full support for OneShot ESCs for easy PID tuning and a sharper response.
Broad RC receiver Support Supports SBus, SumH, SumD, Spektrum1024/2048, XBus, PPM, PWM receivers. No external inverters required (built-in).
Programmable LED: Dedicated output for programmable LEDs-great for orientation, racing and night flying.
I2C port Dedicated I2C port for connection of OLED display without needing a flight battery.
Battery Monitoring Battery monitoring ports for voltage and current.
Sonar: Sonar support for precision low-altitude hold.
Buzzer: Buzzer port for audible warnings and notifications.
SWD: Developer friendly debugging port (SWD) and boot mode selection, unbrickable bootloader.
Symmetrical design: Symmetrical design for a super tidy wiring.
Wire up: Wire up using pin headers, JST-SH sockets or solder pads. Use either right-angled or straight pin-headers.
Barometer : Barometer mounted on the bottom of the board for easy wind isolation.
Loop times: Loop times up to ~2x as fast as previous-generation STM32F1 based boards.
Configuration: Configuration of the flight controller via a cross-platform GUI (Windows/OSX/Linux).
Supports: Supports a variety of aircraft, tri-copters, quadcopters, hexacopters, octocopters, planes .
Currently Ships:
Insured Priority Express Mail 6-9 business days U.S. & U.K. destinations
U.S. Shipping Carriers FED-X or USPS
Insured Standard Registered Shipping 7-20 day delivery other destinations.
