Eachine Wizard X220 FPV Racing Drone Blheli_S F3 6DOF 2205 2300KV 5.8G 48CH 200MW VTX ARF

Eachine Wizard X220 FPV Racing Drone Blheli_S F3 6DOF 2205 2300KV Motors 5.8G 48CH 200MW VTX ARF

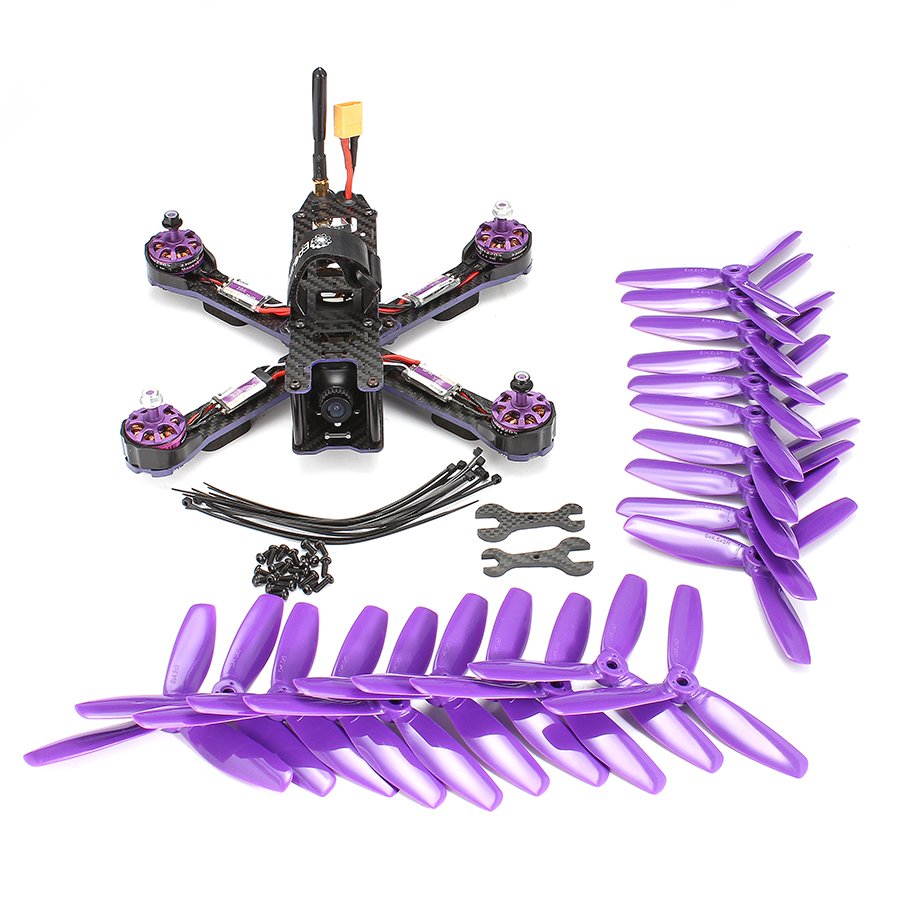

Package includes:
1 Eachine Wizard X220
2 2205 KV2300 brushless motors CW
2 2205 KV2300 brushless motors CCW
4 Eachine 20A BLHELI_S ESCs
10 Kingking 5040 3-blade propellers Purple CW
10 Kingking 5040 3-blade propellers Purple CCW
1 F3 6DOF Flight Controller
1 700TVL camera
1 5.8G 48CH 200mw transmitter
1 Antenna
1 Battery strap
2 Wrenches
This is an ARF version. It does not include the LiPo battery. The photo is for Information and location of the battery only.
We do however have the battery available on our site. Please See LiPo battery shop Category
!
Brief Description
Eachine Wizard X220 ARF
Wheelbase: 220mm
GMachine arm: 4mm carbon fiber
Flying times: 12 minutes
Weight: 364g (without battery)
Take off weight: 535g
2205 2300KV Motors
KV : 2300
Propeller : 5 inch

Eachine 20A BLHELI_S ESC
Con.Current : 20A
Peak Current(10s) : 25A
Input Voltage : 2-4S
BEC : No
Programming : YES
Firmware : Blheli_S
Weight :7.9g
Size(PCB) : 27x12mm

700TVL Camera
Power supply : 3.6-5.5V (powered off TX)
Power consumption : 60mA @5V
Image : 1/3” CMOS, 700TVL
Angle : 127° diagonal FOV, 110° horizontal FOV
FPV tuned light handling
System : PAL
Lens : 2.8mm IR coated
FOV : 127°diagonal 110°horizontal (ideal for fixed camera)
Operation temperature : -20 to 70°C
Square : 29 X 29 X 23.5mm
Lens extrude (LxDia) : 15mm X 14mm
Weight : 12g

5.8G 200mw 48ch Transmitter
Transmitter No.: TS5823S
Modulation : Wideband FM Modulate
Video Format : NTSC/PAL
Output Impedance : 50 Ohm
Output Power : 23-24dBm
Channel:48 CH
Operating Voltage : 7V-24V
Supply Current : 190mA
Operating Temperature : -10~85℃
Video Band Width : 0~8.0 MHz
Audio Carrier Frequency : 6.5 MHz
Video Input Level : 0.8~1.2 Vp-p
Video Input Impedance : 75 Ohm
Audio Input Level : 0.5~2.0 Vp-p
Audio Input Impedance : 10K Ohm
Connector: RP-SMA Female (Inner needle)
Antenna Connector: RP-SMA Male (Inner hole)
Dimensions: 40mm x 23mm x 8mm
Weight: 7.3g
Flight Controller
F3 6DOF, betaflight 2.9.1 version

Kit Includes :Kingkong 5040 3-Blade Propellers
Color: Purple
Quantity: 10 Pairs
Mounting Hole: 5mm
Weight: 137g
Size: 140x140x65 mm
