£46.22
On Hold
Inav F3 Deluxe Flight Controller Integrated with M8N GPS Compass Baro OSD
7 available
Details
Shipping: United Kingdom: £7.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.

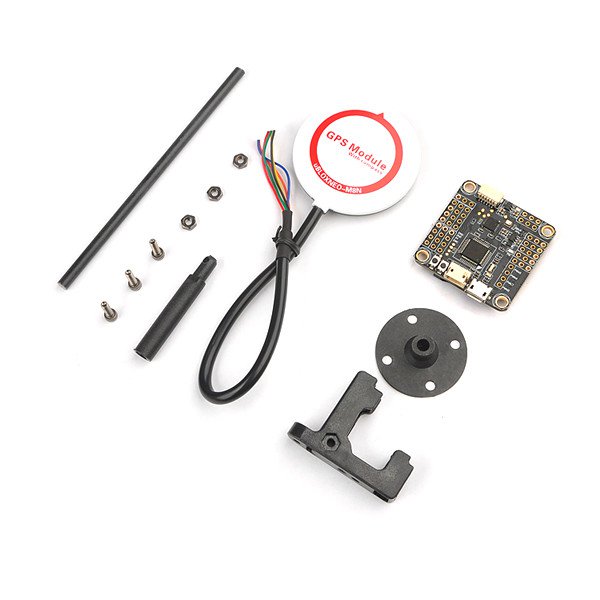

Inav F3 Deluxe 30.5x30.5mm Flight Controller Integrated with M8N GPS Compass Baro OSD
Package includes:
1 Inav F3 Deluxe flight controller integrate Inav OSD, Baro
1 HMGPS-M8N integrate HMC5883L Magnetometer
1 GPS Mounting holder
Specifications :
Flight Controller:
STM32 F303 MCU, Runs Inav 1.7 firmware
SBUS/PPM input (Pin headers)
8PWM output (1-4Pinheaders and Sh1.0 Plug, 5-6 as Pin headers)
Only 36x36mm, mount holes 30.5x30.5mm
128Mb Flash(16M Byte)
Barometer BMP280
SPI Sensor MPU6000
SD Card slot
2-4S Lipo Direct power
GPS:
Quick satellite searching, only need 10s to find 6 satellite in open space
Built-in compass, refresh rate up to 10GHz
Support GPS+BD+SBAS, or GPS+GLONASS+SBAS
Small size and light weight, weight only 18g
Size 45mmx45mmx10mm
Great Features Too !
-Supports Multi-rotor and Fixed Wing Aircraft
-Supports Airmode/Acromode/Angle/Horizon basic FPV mode
-Supports Advanced Navigation mode: NAV GPS Position hold / NAV Alt hold / NAV Return Home/ NAV Way point
-INAV OSD ready (GPS info/ Bat monitor / RSSI etc..)
-SBUS/IBUS/DSMX/PPM Receiver compatible
-LED_STRIP ready
-BUZZER Ready
-BLACKBOX Ready (SD Card slot)
Currently Ships:
Insured Priority Express Mail 6-12 Business Days U.S.,U.K. and most destinations.
Comprehensive User Manuel sent with all completed orders via email ! !
