£18.39
On Hold

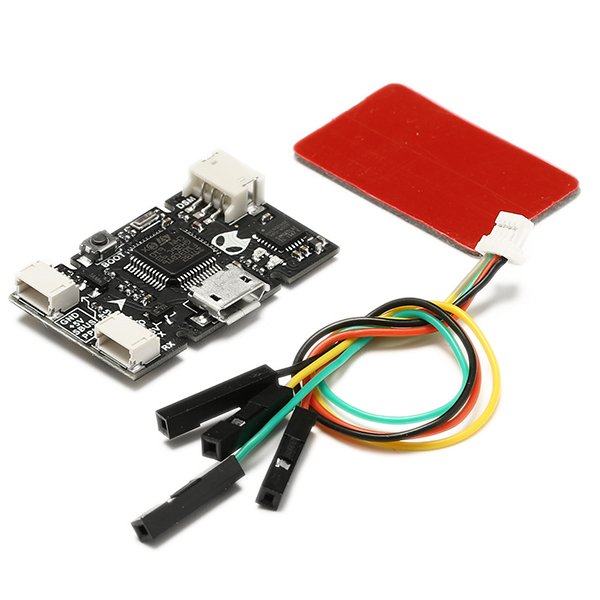

Kingkong NZ32 Micro Brushed Flight Control Board Base NAZE32 6DOF for Q100 DIY
7 available
Details
Shipping: United Kingdom: £3.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Kingkong NZ32 Micro Brushed Flight Control Board Base NAZE32 6DOF for Q100 DIY FPV Quadcopter Frame
Package includes:
1 Kingkong NAZE32 Brush Flight Controller
Brief Description:
Product Brand: Kingkong
Product Name: NAZE32 Brush Flight Controller
Dimensions: 33mm x 0mm
Thickness: 1.2mm
Weight: 4g
Features:
- This FC uses NAZE32 6DOF hardware, software compatibility;
ALIENFLIGHTF1 or NAZE in CleanFlight configurator.
- NZ32 flight controller use MPU6050 and STM32F103CB micro controller (128Kbytes flash memory, 20Kbytes SRAM, ARM 72Mhz Cortex-M3)
- The FC uses 3oZ 4 lays high quality PCB, supports quadcopter or
Hexacopter,
- Total 6 ,brushed motors continuous working current up to 6A,
on board 5V
- Convert 1s battery input to 5V for RX receiver or other equipment ,
current output 400mA maximum.
- This 5V/400mA BEC works reliably when input voltage from 1.8V
to 4.35V
Tech Notes :
The wire cable color:
Blue - PPM
Red - Sbus
Yellow - 5V
Black - GDN
Ships:
Insured Priority Express Mail 6-10 Business Days U.S.,U.K. and all other destinations.U.S. Shipping Carriers FED-X or USPS
