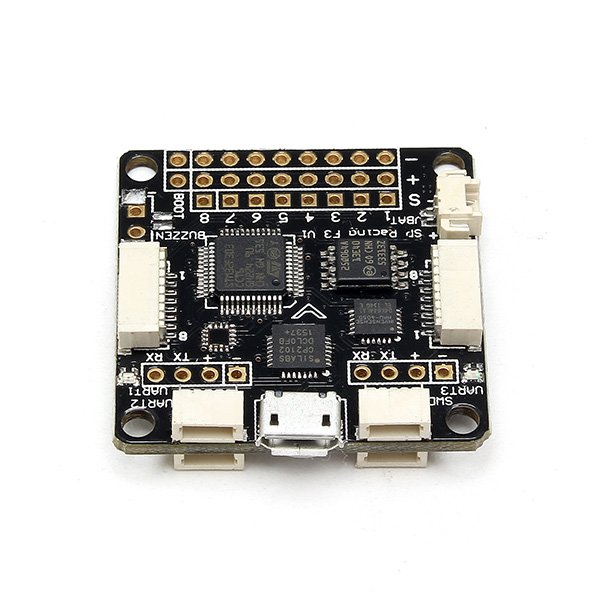

F3 Flight Controller Deluxe 10 DOF for Multirotor Racing

F3 Flight Controller Deluxe 10 DOF for Multirotor Racing
Package Includes:
1 Deluxe 10DOF Version F3 Flight Control for Multicopter with MS5611 Barometer and HMC5883 Compass
2 8p Wire Rod
2 4p Extension Path
5 Pins set
Brief Description :
Product Name: F3 Flight Control
Deluxe 10DOF (with MS5611 Barometer and HMC5883 Compass)
+ 35x35mm board, 30mm mounting holes.
+ STM32F3 CPU.
+ High-capacity Flash (Deluxe 10DOF)
+ MPU6050 Accelerometers and Gyroscopes
+ MS5611 Barometer (Deluxe 10DOF)
+ HMC5883 Compass (Deluxe 10DOF)
+ MicroUSB socket.
+ 4 x 4 pin JST-SH Socket (I2C, SWD, 2xuart)
+ 2 x 8 pin JST-SH Socket (PPM, PWM, SERIAL RX, GPIO, ADC, 3V, 5V, GND)
+ 8 x 3 pin though-holes for pin headers for ESC / Servo connections.
+ 2 x 4 pin though-holes for the 2x serial ports .
+ 2 x 2 pin though-holes for battery voltage and buzzer.
Features:
- Better coding practices and introducing tests, easier to maintain and for future development. (Dominic has software development background)
Many bugs fixed from Baseflight.
- Supports more flight controllers, including CC3D, CJMCU and Sparky.
- Supports OneShot ESC and more than 8 RC channels.
- Additional PID controllers that uses floating point arithmetic operations. (now has 3 built-in PID Controllers)
- And Many more features such as RGB LED strip support, Autotune, In-flight PID tuning with your radio etc.
+ Flight Performance
The F3 builds on tried and tested software, processor and sensor technology to make your aircraft fly like it's on rails.
+ No-Compromise I/O
Use all the features all the time; e.g. Connect your OSD + SmartPort + SBus + GPS + LED Strip + Battery Monitoring + Sonar + 8 motors - simultaneously
+ Configurable
The F3 runs Cleanflight which can be configured to suit your needs using a cross-platform GUI (Windows/OSX/Linux).
+ Tiny and lightweight
The F3 has a standard 35x35mm form-factor with 30mm mounting holes and weighs just 6 grams.
+ Flight Logging
On-board high-capacity black box flight log recorder - optimize your tuning and see the results of your setup without guesswork.
+ Next-Generation CPU
The F3 has an ARM Cortex-M4 72Mhz CPU with Math co-processor (FPU) for efficient flight calculations that gets more done in less time.
Loop times up to ~2x as fast as previous-generation STM32F1 based boards.
+ Developer Friendly
Developer friendly debugging port (SWD) and boot mode selection, unbrickable bootloader.
+ OneShot ESC
Full support for OneShot ESCs for easy PID tuning and a sharper response.
+ Broad RC receiver Support
Supports SBus, SumH, SumD, Spektrum1024/2048, XBus, PPM, PWM receivers. No external inverters required (built-in).
+ Programmable LED
Dedicated output for programmable LEDs - great for orientation, racing and night flying.
+ Battery Monitoring
Battery monitoring ports for voltage and current.
+ Sonar
Sonar support for precision low-altitude hold.
I2C Port
I2C port always powered, perfect for external sensors or always-on OLED Screen.
+ Buzzer
Buzzer port for audible warnings and notification.
